SPECIFICATIONS

Alarm Type: FTP Photo

Audio Compression Format: G711A,AAC

Audio Input: 1 RCA

Audio Output: 1CH RCA

Backup Type: Hard Drive

Certification: CE,FCC,UL,weee

Compression Format: H.265,H.264

Hard Drive Size: 3.5''

Hard drive Interface Type: SATA

IP Mode: Dynamic IP address,Static IP address

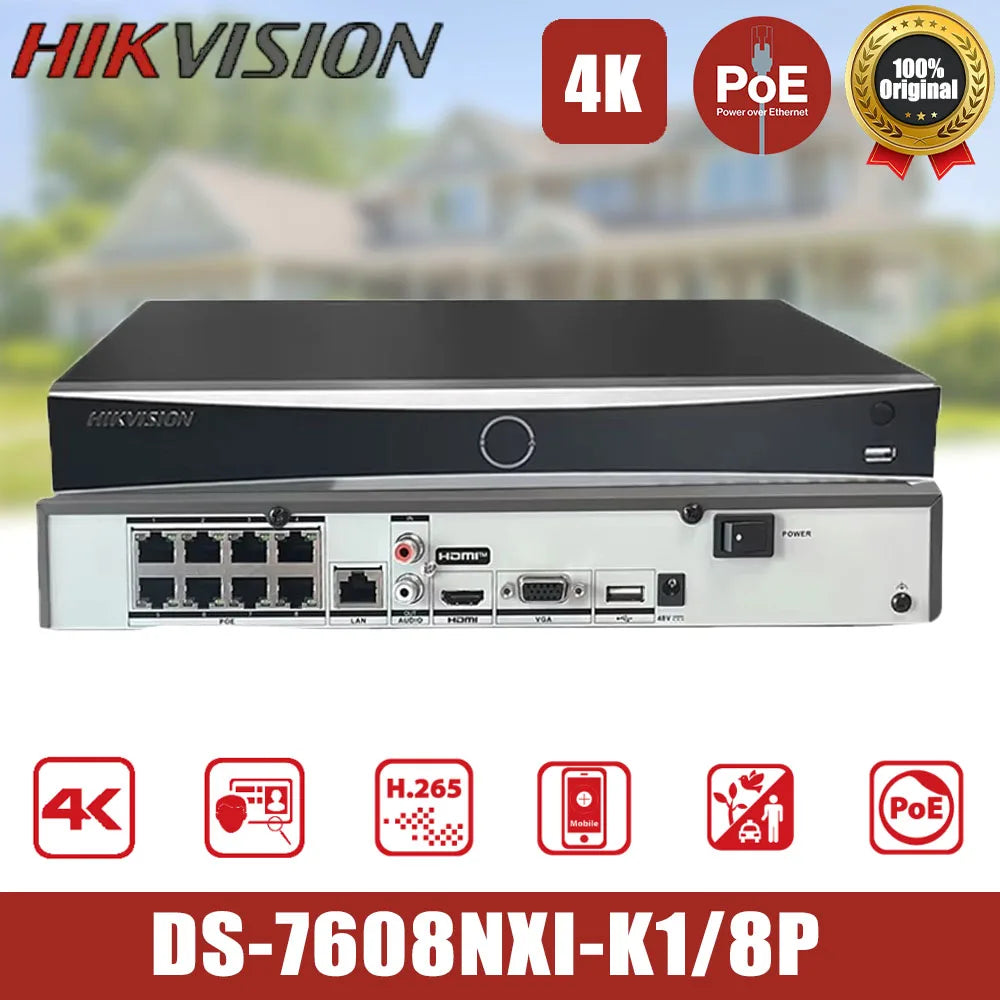

Model Number: DS-7608NXI-K1/8P

Network Interface: RJ45 10/100M

Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,DNS

POE: 8 Port

Supported Mobile Systems: iPhone OS,Android

Supported Operating Systems: Microsoft Windows 7,macOS

Technology: Network

Two-way Audio: Yes

Video Input Interface: VGA

Video Output: 1VGA + 1HDMI-Compatible

Video Standard: NTSC,PAL

e-Cloud(P2P): Yes

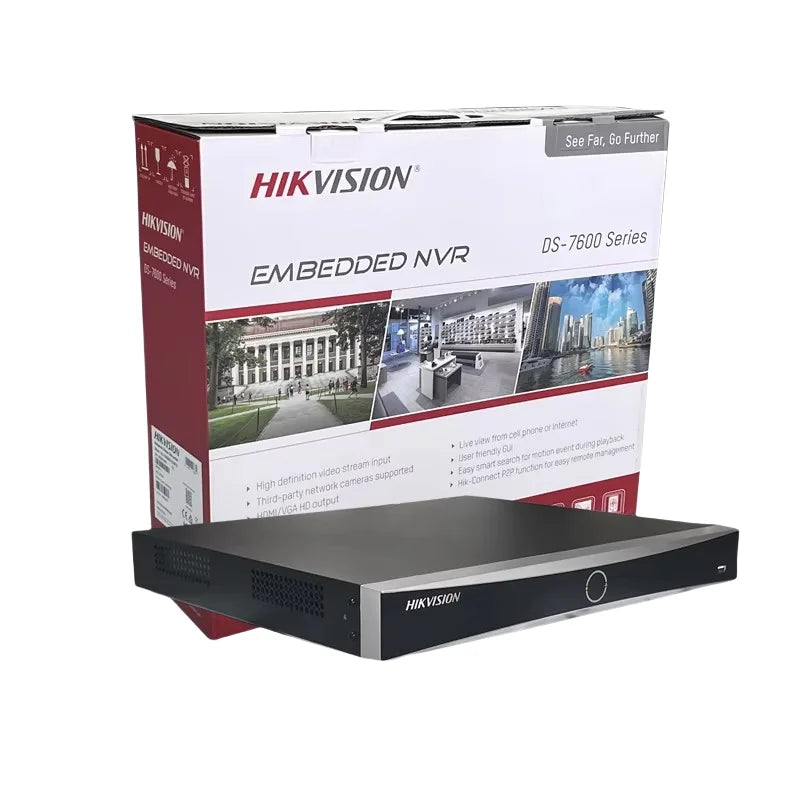

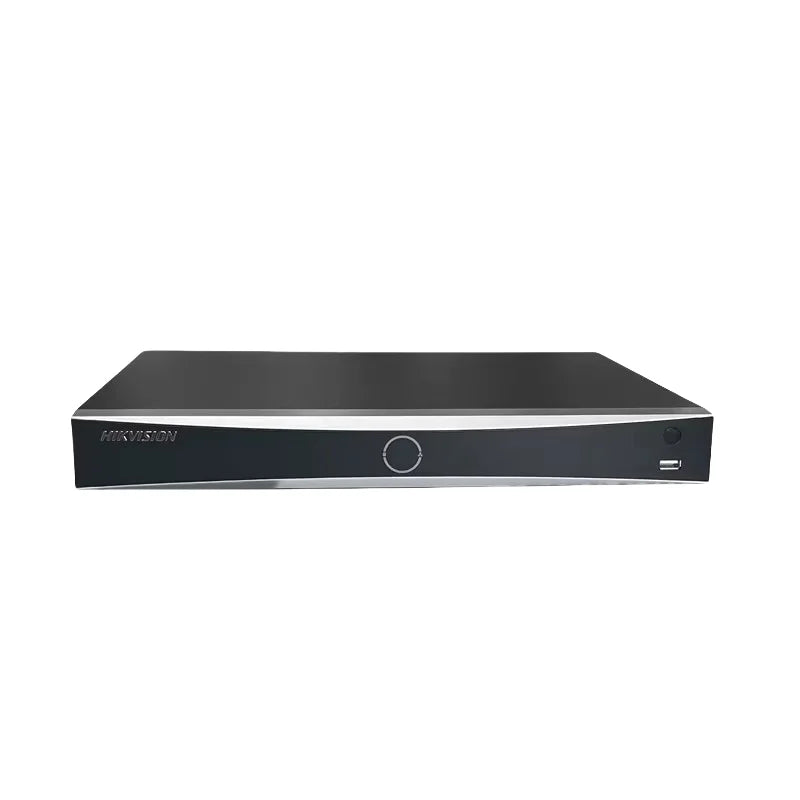

8-ch Series AcuSense 4K NVR

• Intelligent Analytics

• AI by Deviceperimeter protection, motion detection 2.0;Facial recognition, perimeter protection, motion detection 2.0

• AI by Cameraperimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA;Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

• Facial Recognition

• Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search;NA

• Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)

• Facial Detection and Analytics Performance1-ch, 8 MP

• Face Picture Comparison4-ch

• Motion Detection 2.0

• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm

• By CameraAll channels

• Perimeter Protection

• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• By CameraAll channels

• Throwing Objects from Building

• By CameraAll channels

• Video and Audio

• IP Video Input8-ch

• Incoming Bandwidth80 Mbps

• Outgoing Bandwidth80 Mbps

• HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video Output ModeHDMI/VGA simultaneous output;HDMI/VGA independent output

• CVBS OutputN/A

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Decoding

• Decoding FormatH.265/H.265+/H.264+/H.264

• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback8-ch

• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

• Stream TypeVideo, Video & Audio

• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network

• Remote Connection128

• APIONVIF (profile S/G); SDK; ISAPI

• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version

• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE

• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power≤ 75 W

• StandardIEEE 802.3af/at

• Auxiliary Interface

• SATA1 SATA interface

• CapacityUp to 10 TB capacity for each HDD

• USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

• Alarm In/Out4/1;N/A;N/A ;N/A (4/1 is optional)

• General

• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian

• Power Supply48 VDC, 1.875 A

• Consumption≤ 10 W (without HDD, and PoE off)

• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity10% to 90%

• Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")

• ≤ 1 kg (without HDD, 2.2 lb.)
